Description

Reacts to alarms in a split second

We have developed the Jeweller radio protocol to ensure the uninterrupted operation of all devices within the security system. The Jeweller uses time frames to synchronize communication of connected devices, authentication to eliminate forgery, and encryption to protect against data leaks. Moreover, it allows devices to operate for years from pre-installed batteries. Thanks to Jeweller, StreetSiren DoubleDeck can respond to detector alarms in 0.3 seconds, even when hub is offline.

  • Two-way communication at a distance of up to 1,500 meters,
  • Siren activation triggered by alarm in 0.3 second, and
  • Adjustable ping interval from 12 seconds.

Weatherproof

StreetSiren DoubleDeck is resistant to heat, cold, and rapid changes in temperature. Its hermetically sealed body has been rated IP54 level of ingress protection. The outdoor siren is ready to withstand exposure to rains or snowfalls and can be installed on the exterior walls without a canopy.

  • Withstands heat up to +50°С,
  • Withstands cold up to −25°С, and
  • Protected from dust and precipitation IP54.

Tech Specs

Classification Warning device with LED indicators (outdoor siren)
Type of siren Wireless
Installation method Outdoors / indoors
Compatibility Operates with all Ajax hubs, and range extenders
Type of notification Sound/light
Sound volume level Adjustable, 85−113 dB at a distance of 1 m
Alarm duration Adjustable, 3–180 s
Indication of armed/disarmed status Available
Power supply Four CR123A batteries, 3 V - Mains supply, DC 12 V±20%
Battery life Up to 5 years
Temperature sensor Available
Operating temperature range From −25°С to +50°С
Permissible humidity Up to 95%
Ingress protection rating IP54
Anti-sabotage Forgery prevention, Jamming detection, Tamper-resistant
Remote configuring and testing Available
Dimensions 200 × 200 × 51 mm
Weight 528 g
Color Black/white
Service life 10 years
Included in box Complete set StreetSiren DoubleDeck, SmartBracket mounting panel, 4 batteries CR123A (pre-installed), Installation set, User's guide

Free promotion of security services

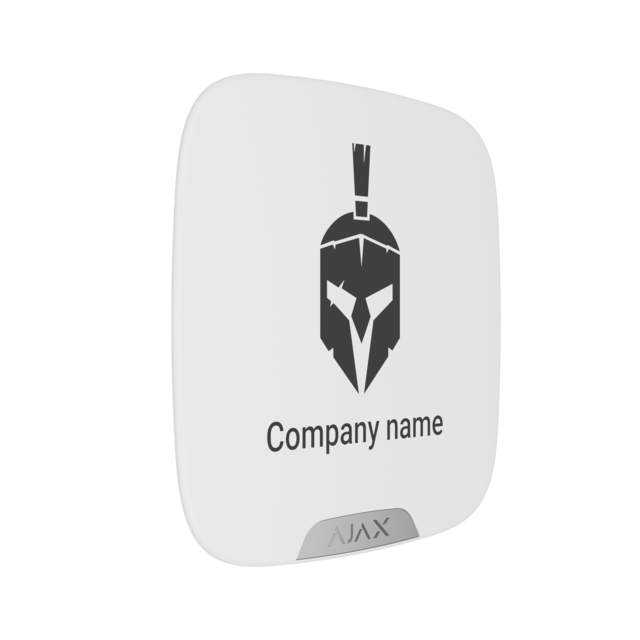

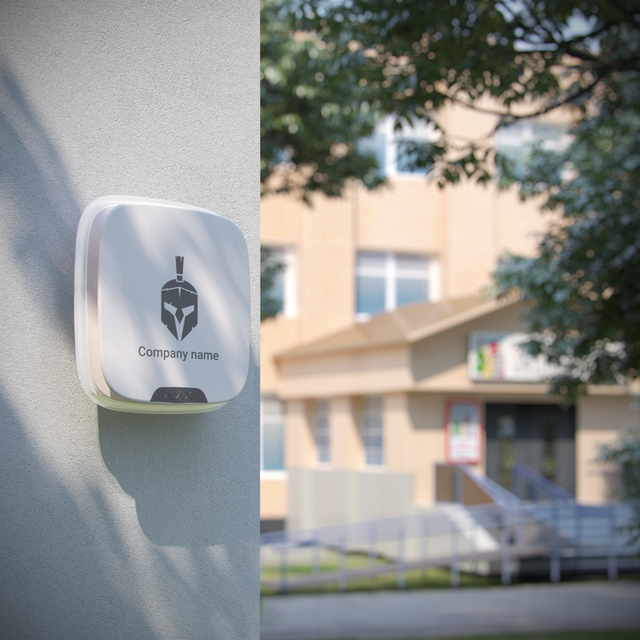

Security service providers can print their logo and contact information on the front panel of an outdoor siren. Located at the building, it will serve as an additional marketing channel that reaches new customers: neighbors and visitors.

  • Compatible with both wired and wireless StreetSiren DoubleDeck models
  • Increases business exposure via custom branding

To indicate the system state

LED indication and short beeps of the buzzer remind users that premises are armed and delay when entering feature is active. The risk of a false alarm becomes significantly lower.

Protected from vandals

2.5 meters is an optimal height for installing an outdoor siren. It improves visibility, audibility, and makes the device less accessible to intruders. Still, if someone will try to tear the siren off, the accelerator will trigger an alarm. In any case, alarm monitoring company and users will be notified about sabotage, and vandals will be deterred by a loud sound of the buzzer.

To attract attention

StreetSiren DoubleDeck needs less than a second to activate a powerful siren and bright LED indicators in response to an alarm signal. Any break-in will be immediately exposed.

Right protection for every setting

StreetSiren DoubleDeck is flexible when it comes to settings which makes it as relevant in a quiet gated community as in a loud industrial area. The buzzer can be set to generate sound from 85 to 113 dB for an adjustable period: 3 to 180 seconds. Or it can be completely silent when the device is set to respond to alarm triggerings only with LED indication. The Ajax app allows engineers to choose detectors that activate the siren. It helps to prevent awkward situations when neighbors are notified every time that a washing machine leaks.

Buzzer loudness level up to
113 dB

Alarm duration length up to
180 seconds

Effortless maintenance

Outdoor siren operates for 5 years on the pre-installed batteries and features external power terminals. Whether to use batteries as a primary power supply or a backup one is your choice. In any case, the system will notify you about the need for maintenance when the battery level will drain to 20%.
