Description

Convenient Ajax system control

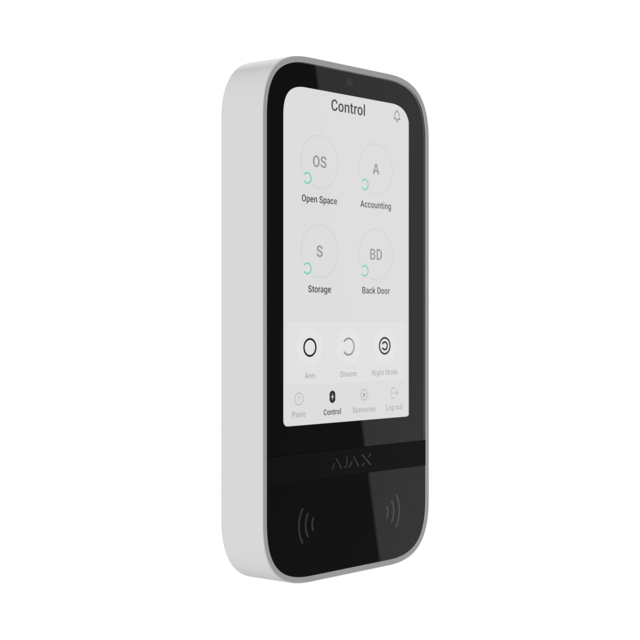

KeyPad TouchScreen combines security and smart home device management. An intuitive Ajax app-like interface and multiple language options make it an easy-to-use solution. The big display, DESFire and BLE technologies, and code options ensure a secure and efficient experience.

Compatibility

Compatible hub models

Hub Hybrid (2G)

Hub Hybrid (4G)

Communication

Fibra communication technology
Proprietary wired communication technology.
Fibra combines the reliability of wires with the freedom of radio connection.

It features:

  • Two-way communication.
  • Advanced anti-sabotage.
  • Instant notifications.
  • Remote configuration via the app.

Line connection
4-core cable

Fibra line length
up to 2,000 meters
When using the U/UTP cat.5 twisted pair.

Calculate line length at the facility

Encrypted communication

Key features

Sensor type
Capacitive

Security mode indication
Only when KeyPad Fibra is active.

Duress code
50 personal codes
One per each user.

1 general code
One per KeyPad Fibra.

Functional button
Panic button
To activate an alarm.

Mute fire alarms
To mute interconnected fire detectors alarms.

Codes
50 personal codes
One per each user.

1 general code
One per KeyPad Fibra.

ACE Type
Type B

Recommendations Device is designed for indoor use only.
Anti-sabotage protection

Code guessing protection

KeyPad Fibra locks for 3-180 minutes if an incorrect code
is entered more than 3 times in a row within 1 minute.
The lock time is adjusted by PRO or user with admin rights in the Ajax app.

Tampering alarm
Alerts of attempts to detach the detector from the surface or remove the mounting panel.

Protection against forgery
device authentication

Power supply

Keypad’s operating voltage range
5−27 V⎓, up to 230 mW
The detector is powered by the control panel.

Keypad’s nominal operating voltage
24 V⎓

Quiescent keypad’s current consumption at nominal voltage
0.16 mA

Maximum keypad’s current consumption at nominal voltage
15 mA

Maximum output peak-to-peak ripple voltage
220 mV

Enclosure

Dimensions
150 × 103 × 19 mm

Weight
148 g

Operating temperature range
from −10°C to +40°C

Operating humidity
up to 75%

Protection class
IP50

Colours Black and White
Complete set KeyPad Fibra
SmartBracket mounting panel
Installation kit
Quick Start Guide

Touch IPS display

with a diagonal of 5 inches

Operation with secured cards and key fobs

Pass and Tag access devices

Personal access codes and duress codes

Sound Notification

about delays, door, opening, and alarms

Keypad Touchscreen: the ultimate security & automation control panel

Experience the perfect fusion of security control and automation devices management with Keypad TouchScreen

Watch on Youtube >

Black and white themes

Communication range with an Ajax hub

Up to 1,700 m

Designed for any location

  • Shops
  • Museum
  • Private home
  • Co-working space
  • Workplace or warehouse
  • Educational institution
  • Office
  • Car service
